Specification:

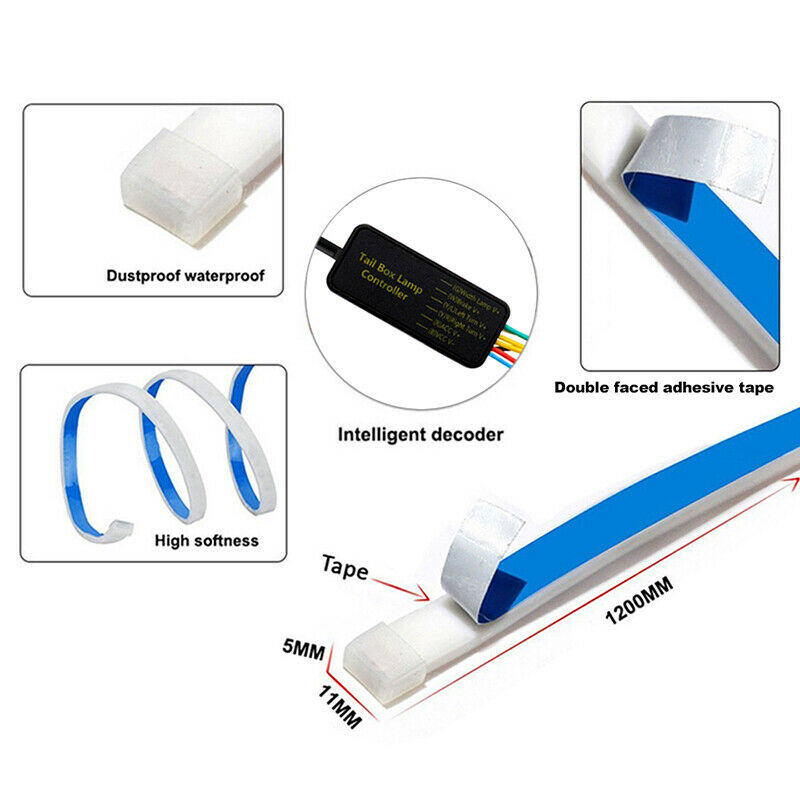

Size: 120cm*1cm*0.5cm / 47.2inch*0.39inch*0.196inch
Working Voltage: DC12V
LED Power :10W

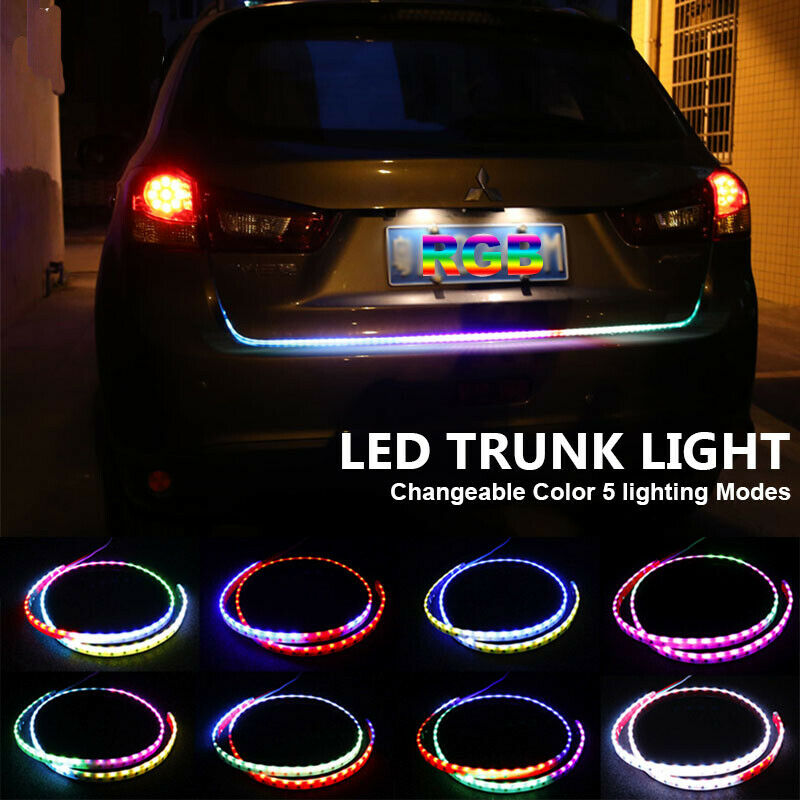

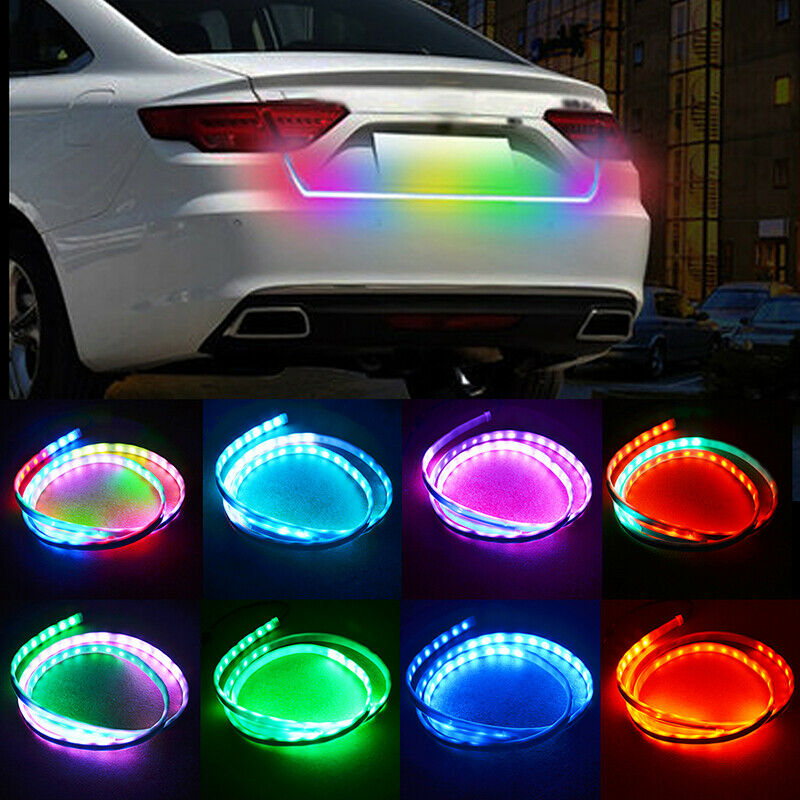

Color: RGB

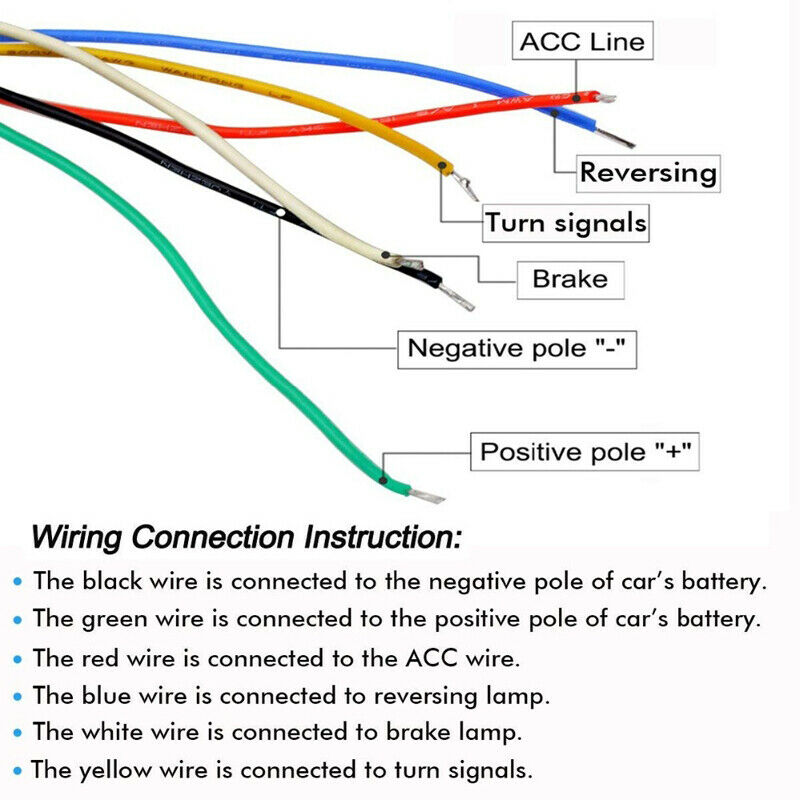

Tail Box lamp instruction:
This product uses imported lamp beads and new anti-UV materials, please carefully read the following instructions before installation:
1. Red line: Connect the battery positive or ACC, provide 12V power supply
2. Black line: connect the battery negative or ground
3. Blue line: Conect parking(back-up) line.
4. Yellow line L: Connect the left turn line
5. Yellow line R: Connect the right turn line
6. Green line: connect positive line(driving mode)(can cancel)
7. White line: connect the brake line

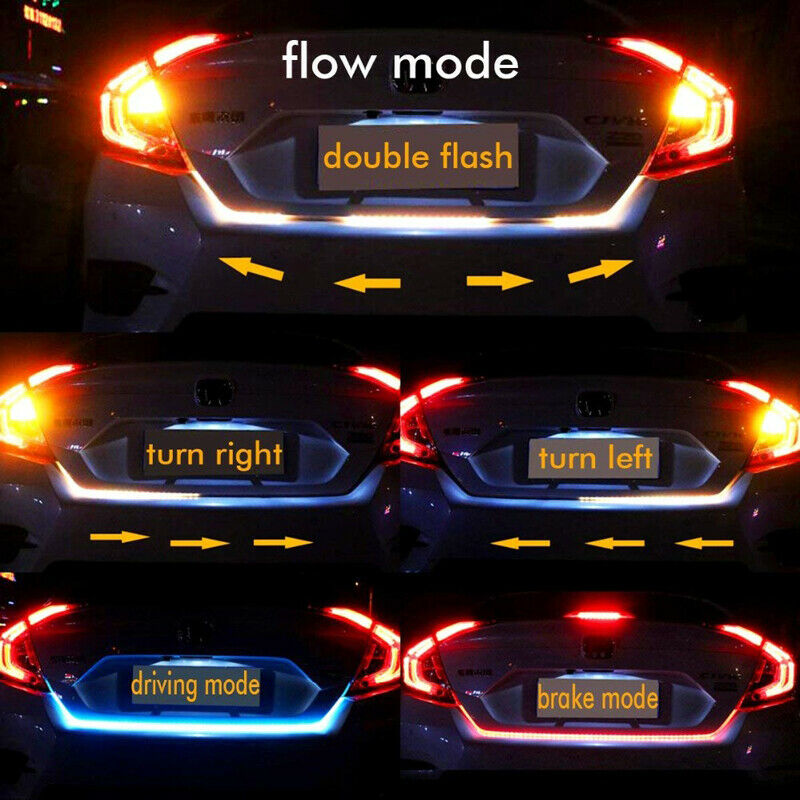

Function:
(1) running: keep ice blue light.
(2) brake:flowing red light.
(3) turn left : Flowing left direction red light.
(4) turn right: Flowing right direction red light.
(5) double flash : Flowing double direction red light.

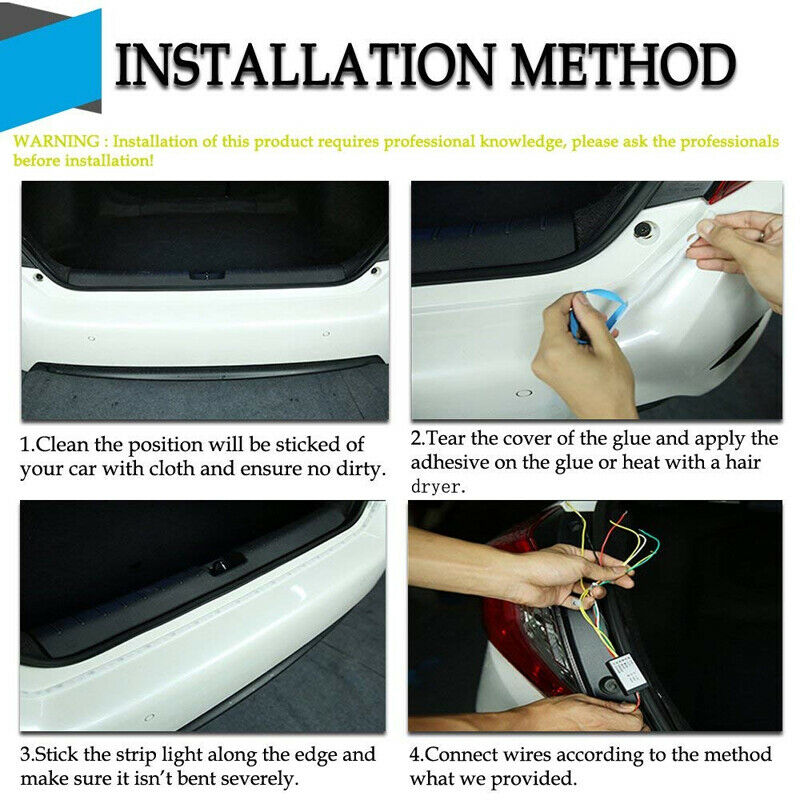

Precautions for use:
1. Please follow the wiring instructions in strict accordance with wiring instructions
2. This product is strictly prohibited cutting or cutting use
3. This product Wei soft board design, prohibit 90 degrees bending
4. Please do not damage the product's silicone strips for better waterproofing
5. Do not pull hard when installing
